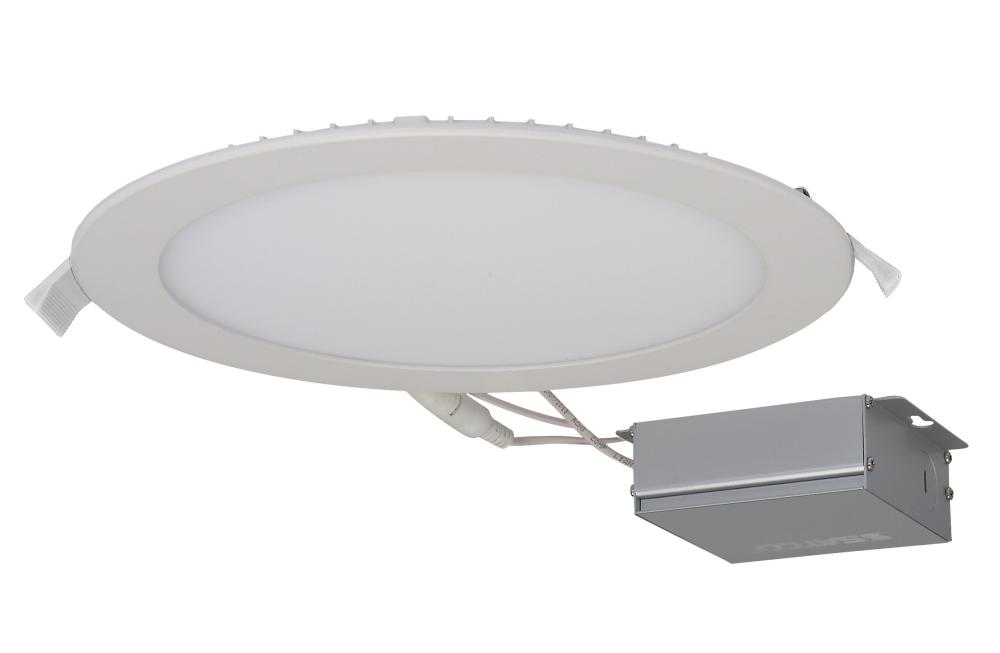

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver (S11607)

Image may not reflect selected features

No Image
Available

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver

BASE PRICE:

/ / 1

($61.46 / 1)

WAS

Call for Price

Item #:

S11607

Dimensions:

Height: 0.94"

Width: 8.88"

Finish:

White

Availability:

Manufacturer may be Out Of Stock.
This item is discontinued and may not be in stock.

Recommended Items

Description

Details

Downloads

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

8.880000000000001

Dimmable:

Yes-Dimmable

Each Height:

9.41

Each Length:

9.41

Each Width:

1.81

Lumens:

1800L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.200A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

108

CA Prop-65:

Lead

CCT Selectable:

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

8.125 in. Cutout

Clearance Height:

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.09279999999999999

Each Quantity:

Efficacy:

75.00 LPW

FCC Compliant:

Yes

Feature 1:

Diameter: 8.88 inches, Height: 0.94 inches

Feature 2:

Dimmable

Feature 3:

Wet location rated for indoor use

Feature 4:

4000K Cool White Light

Feature 5:

Superior 90 CRI light quality

Feature 6:

5 year limited warranty

Feature 7:

1800 lumens

Feature 8:

Rated for 50,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

120W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

Satco's S11607 24 watt, 8 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space i

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Rec Spacing Between Fixtures:

6 ft. to 8 ft.

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

24WLED/DW/EL/8/940/RND/RD

Sloped Ceiling Compatible:

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Weight Lb.:

1.89
